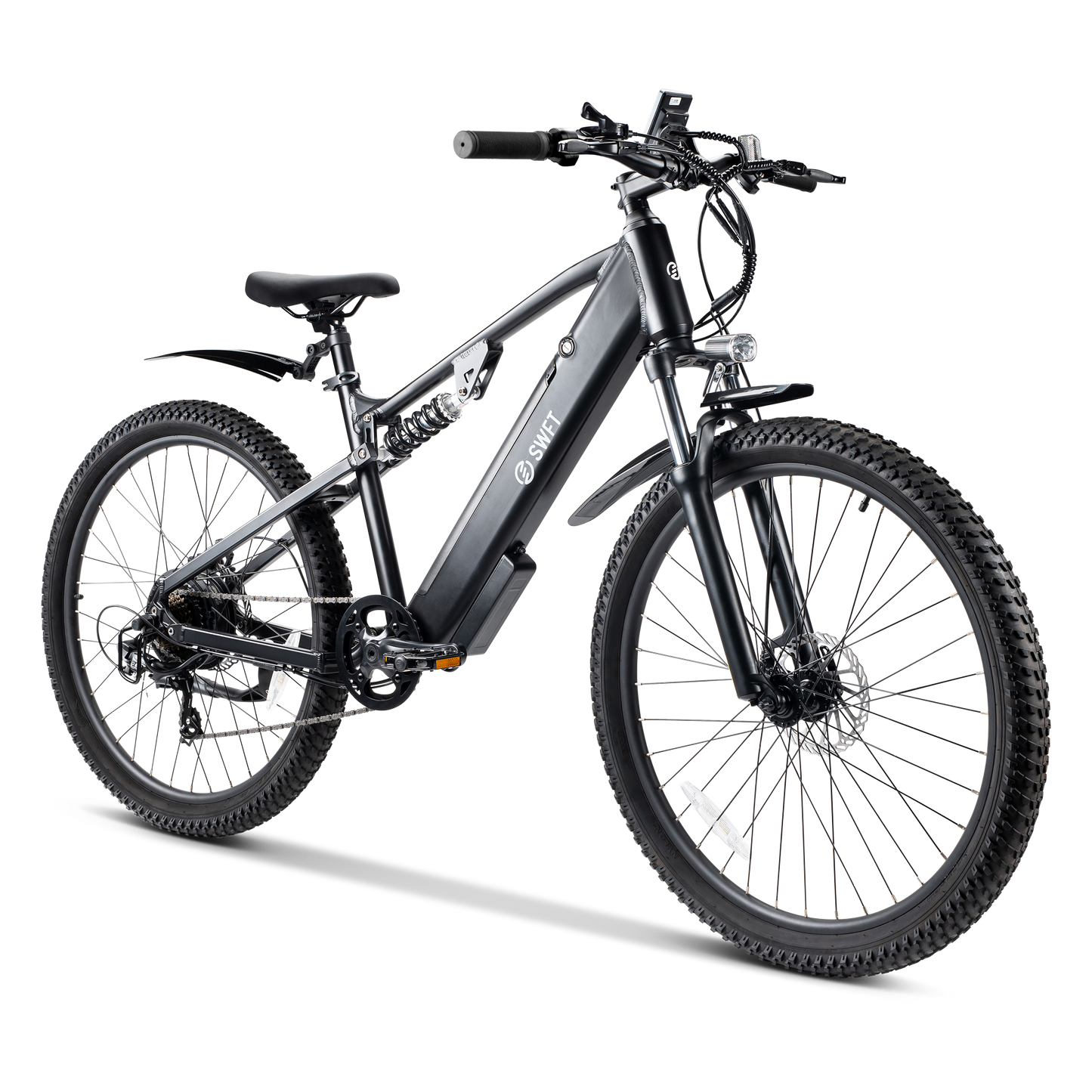

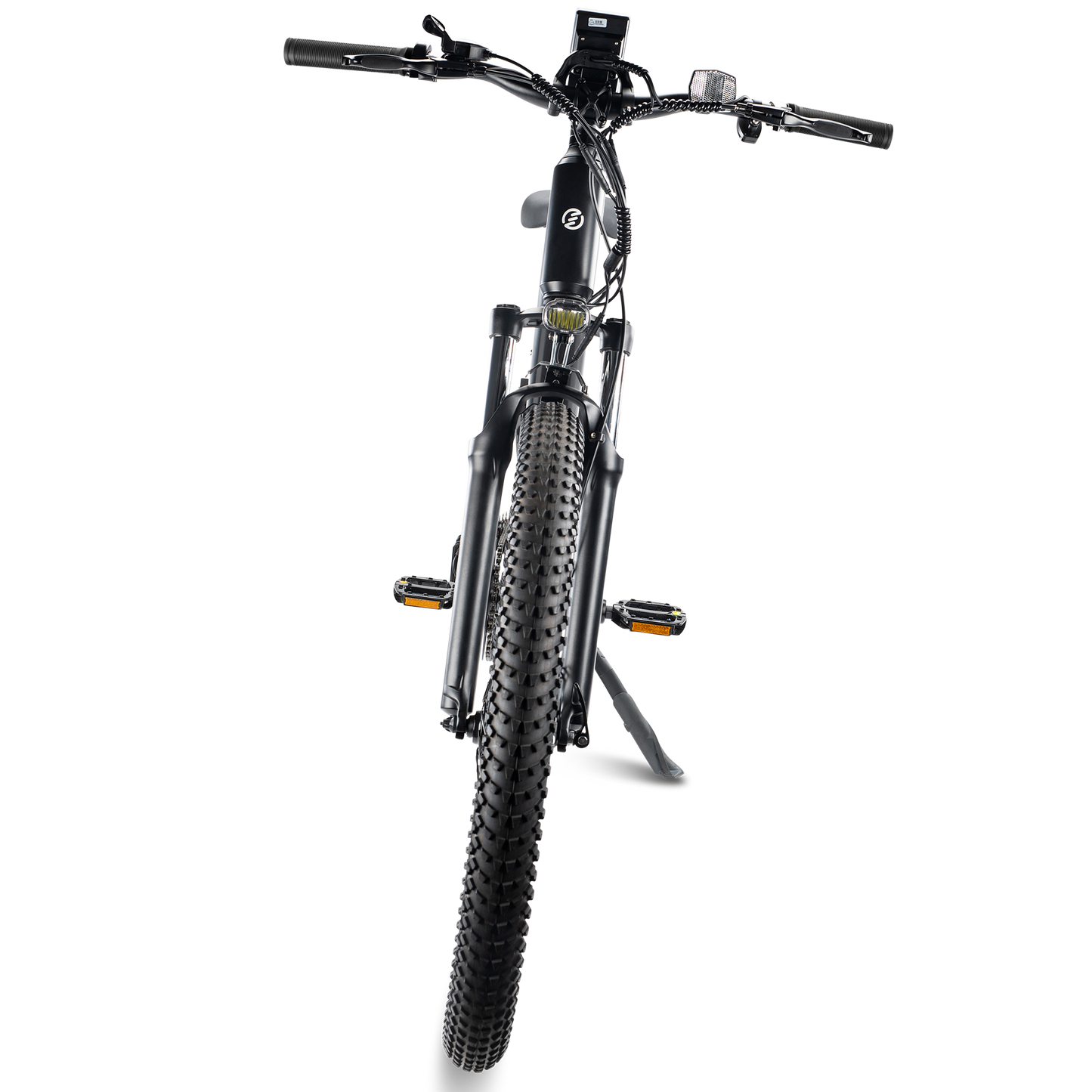

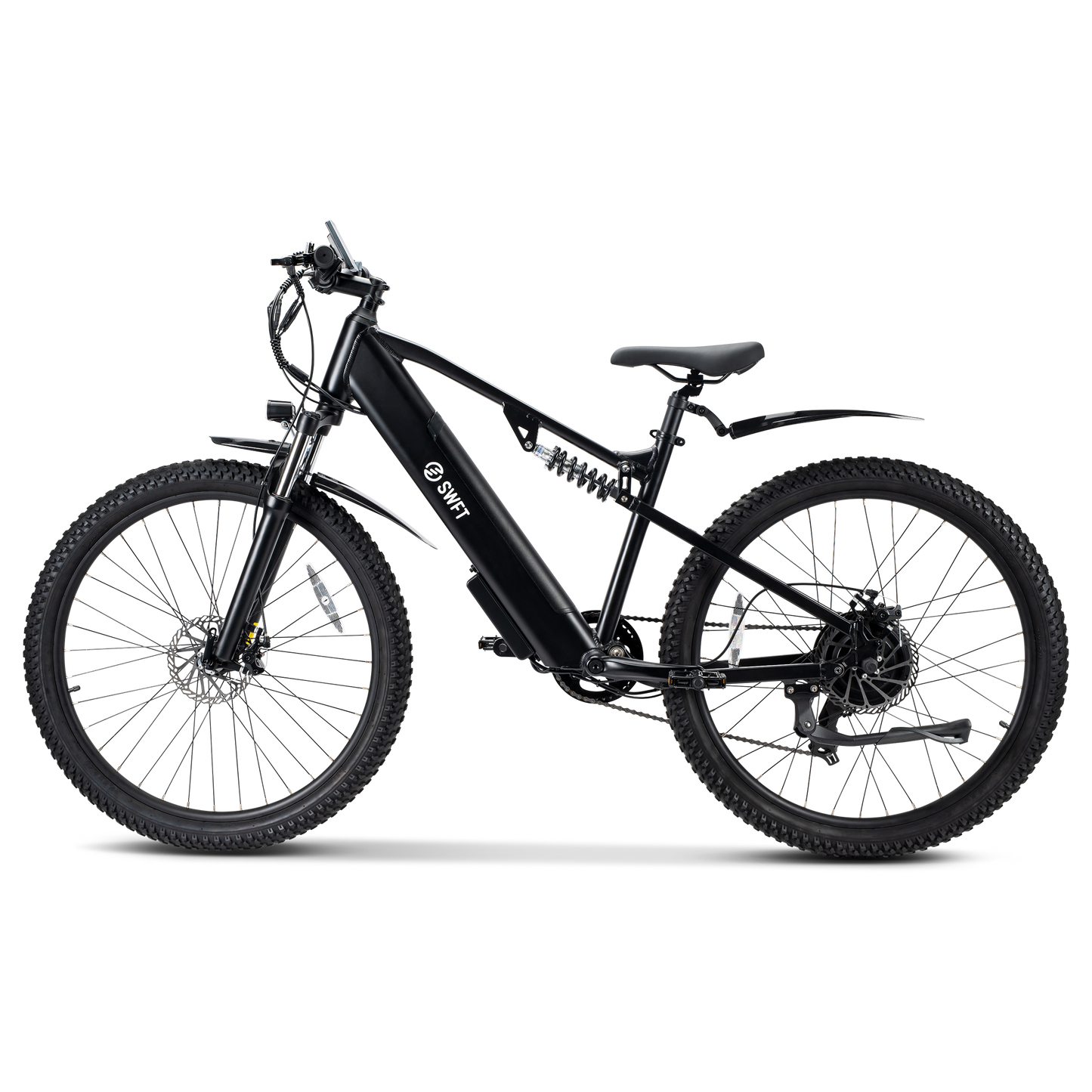

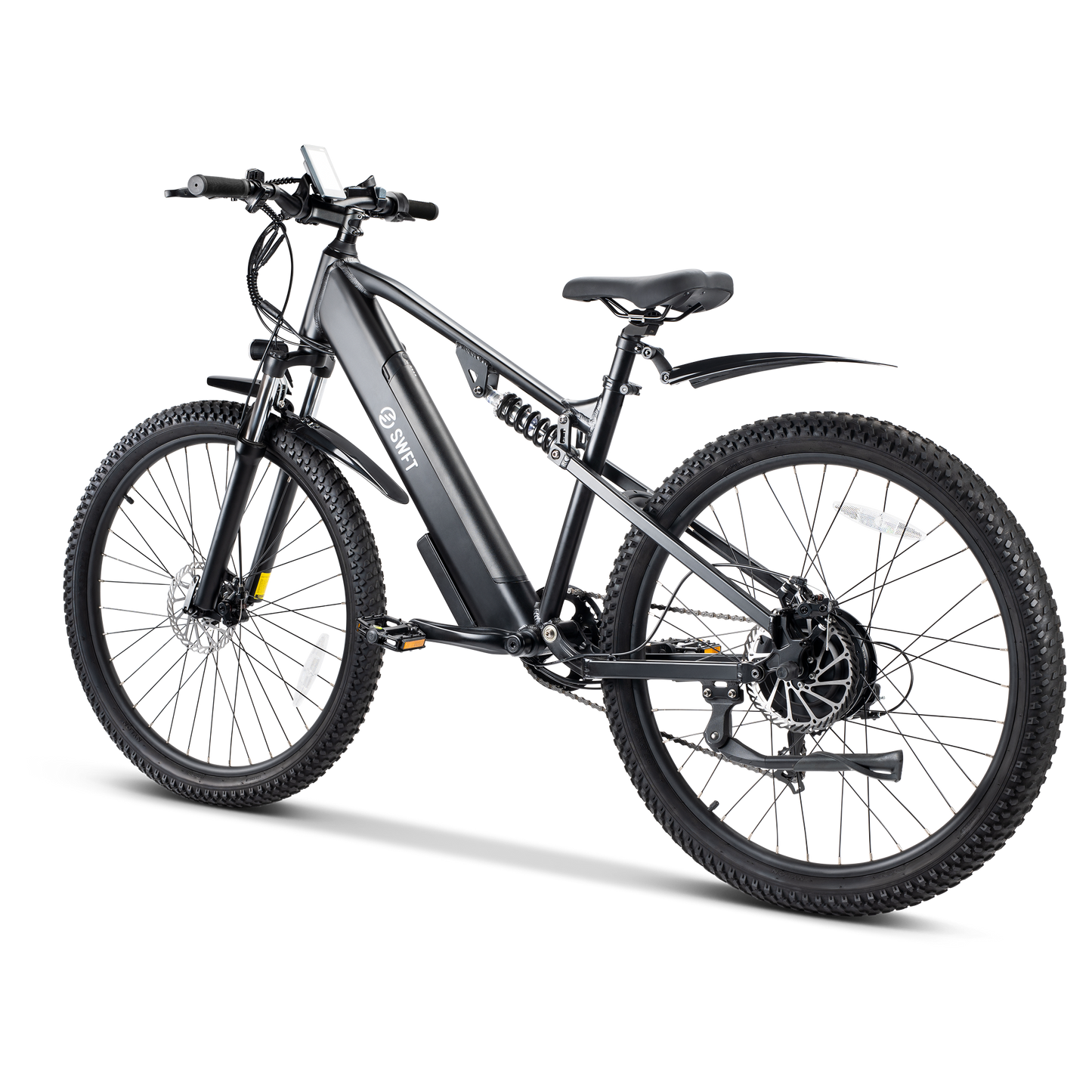

APEX

Deluxe electric mountain bike

45 MI
max range
20 MPH
top speed
750 W
motor
Regular price $2,199
Regular price Sale price $2,199.00
+ FREE SHIPPING Sale Sold out
Regular price $2,199
Regular price Sale price $2,199.00
+ FREE SHIPPING Sale Sold out
Our APEX goes the distance - up to 45 miles on a single charge! The LCD display tracks your stats while the high-performance knobby tires grip from the road to the Rockies. The steel frame construction provides higher clearance while the hydraulic disc brakes and full suspension reduce fatigue on longer rides. Feel comfortable and safe enough to tackle everything from your favorite trails to city streets.

Product Manual

English: Download manual (PDF)
(Last updated: 2022-11-21)

Returns

Not sure if the APEX is for you? No stress. We accept returns on unopened e-bike shipments within 15 days of the delivery date. Find more about our return policy here.

  • 7-speeds and 750W MOTOR

    7-speeds and 750W MOTOR

    Powered with a 750W brushless rear motor, the APEX allows you to choose a speed to match your ride!

  • full suspension

    full suspension

    Built-in suspension on the front forks and e-bike frame let you ride comfortably on the road or off!

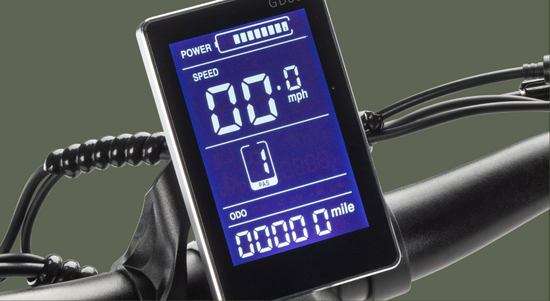

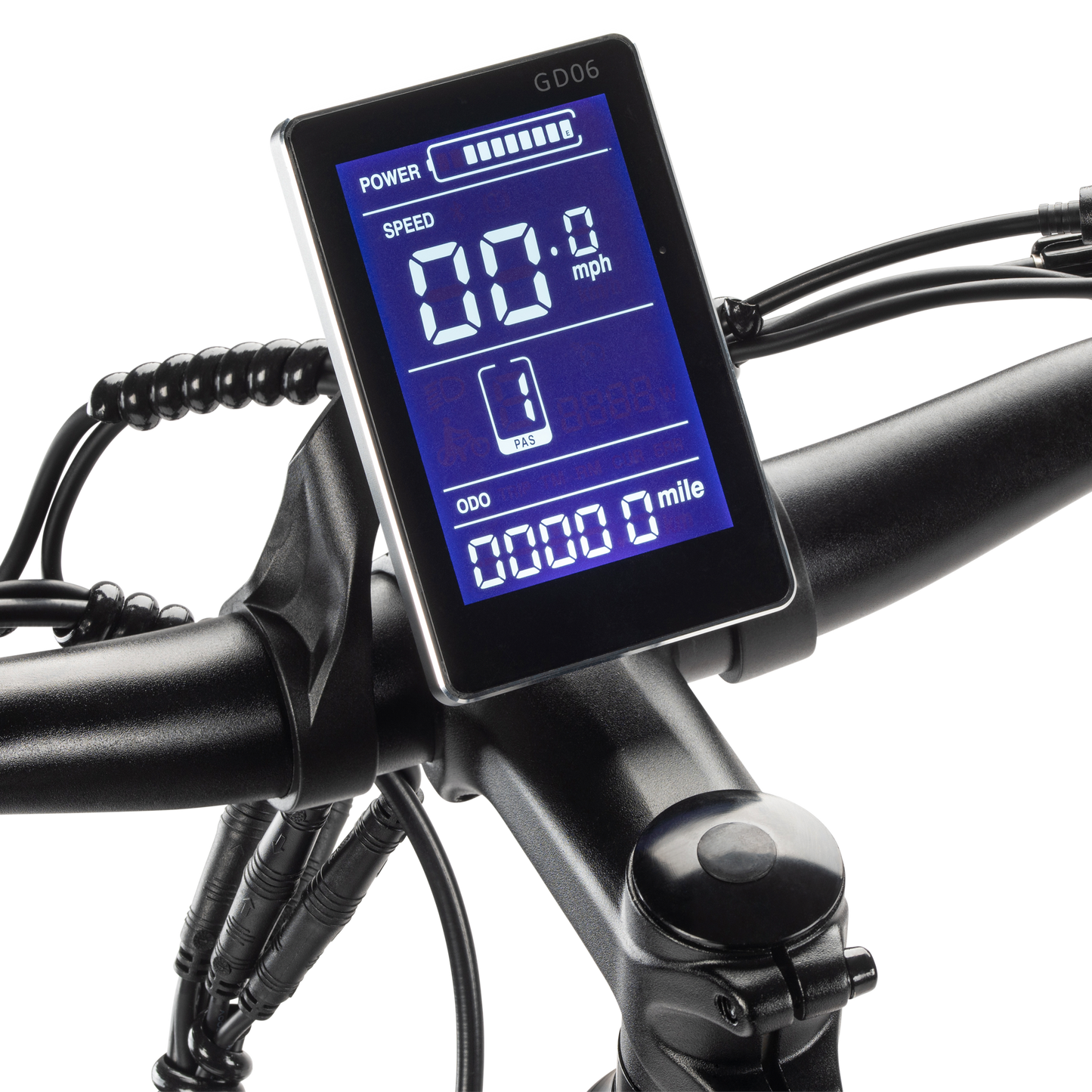

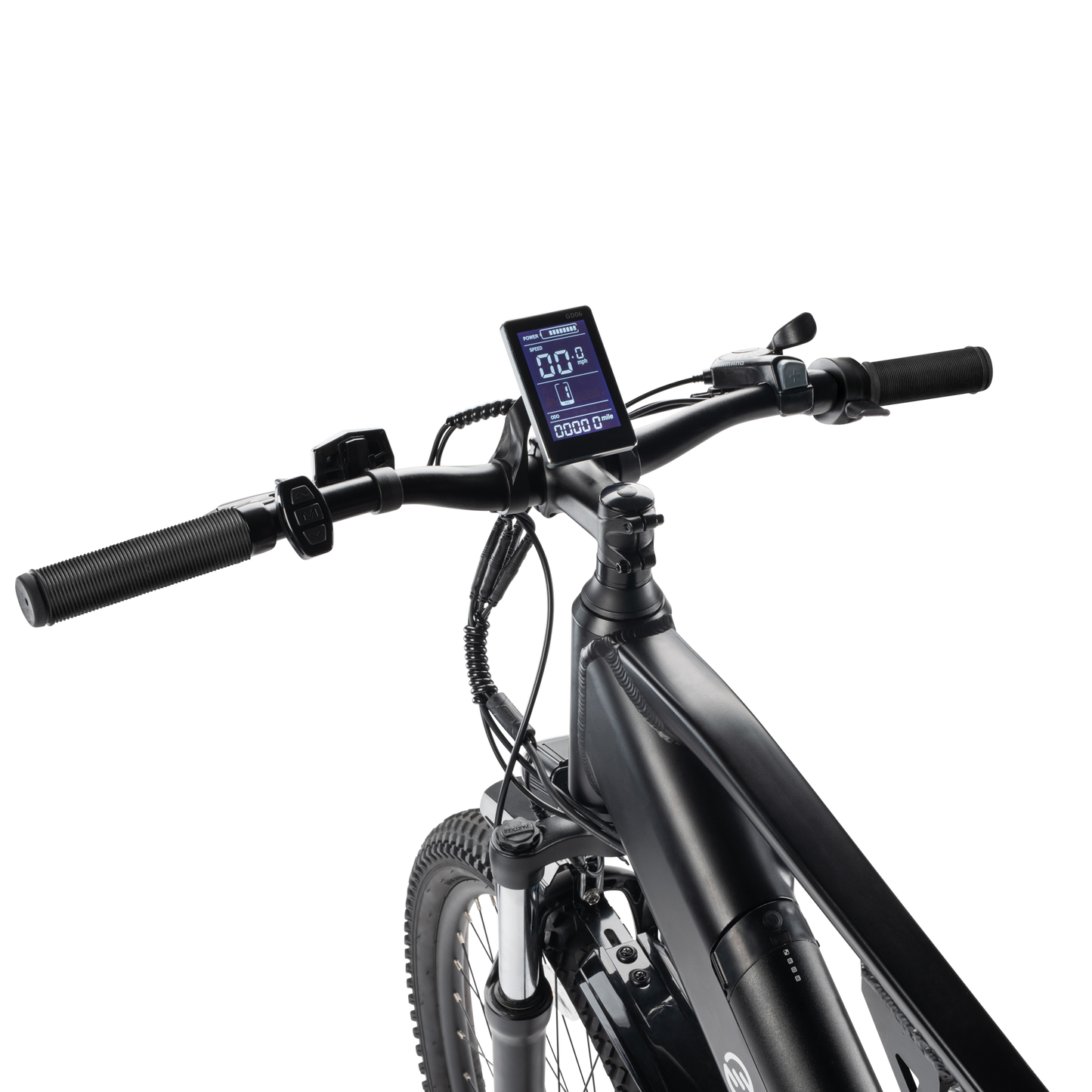

  • LCD control Display

    LCD control Display

    The backlit LCD screen tracks trip distance, total distance, pedal-assist level, speed and battery life.

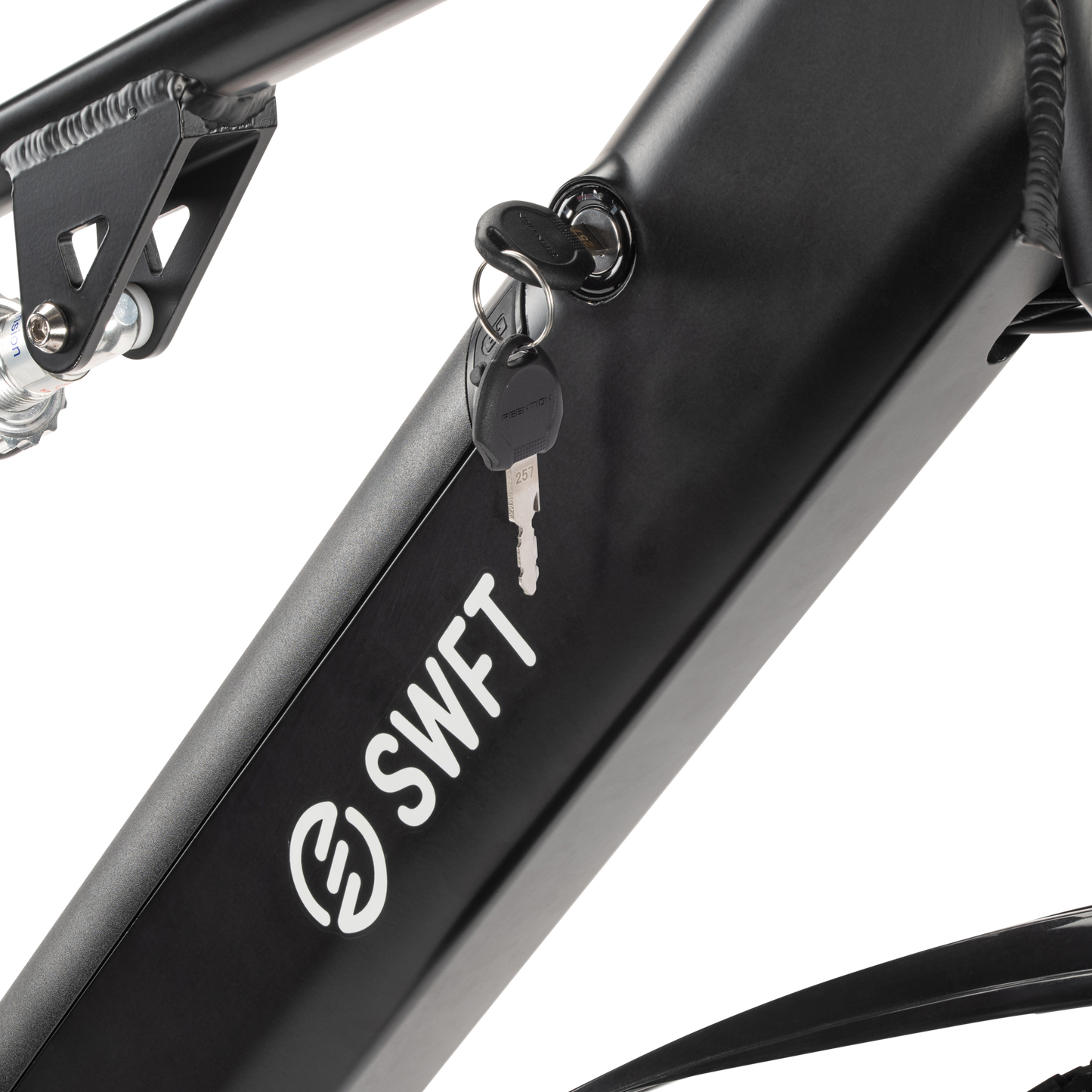

  • 46.8V 10.0A LITHIUM-ION BATTERY

    46.8V 10.0A LITHIUM-ION BATTERY

    The rechargeable UL2271-tested battery locks onto your frame, and detaches for easy charging.

  • front end suspension

    front end suspension

    Performance front and rear disc brakes provide quick stopping power when you need it.

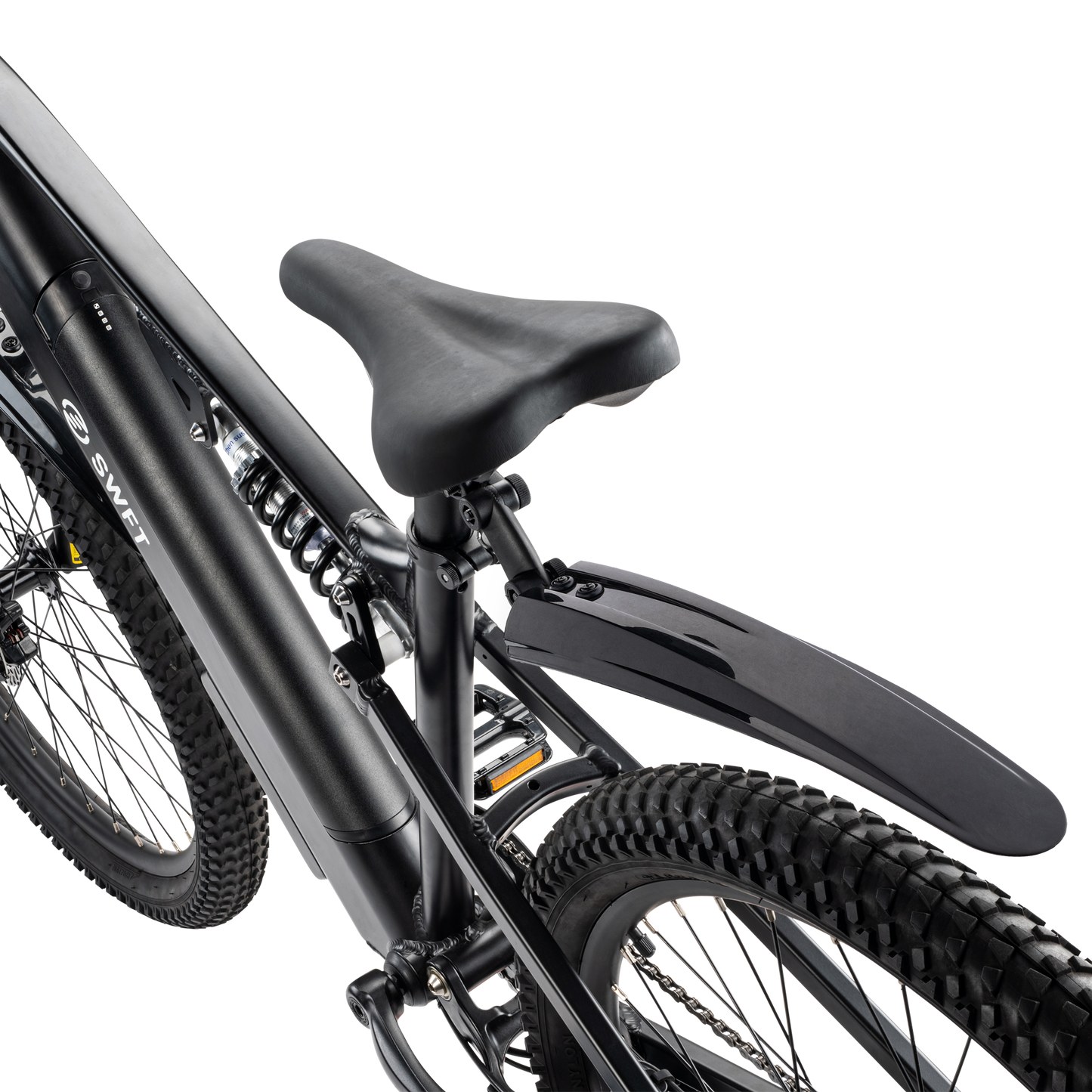

  • Front & REAR FENDERS

    Front & REAR FENDERS

    The front and rear fenders protect you from kicking up mud and dirt when you’re on-the-go.

PRODUCT SIZE
73.6 x 27.2 x 42.9 in
(187 x 69 x 109 cm)
PRODUCT WEIGHT
58.4 lbs (26.5 kg)
SHIPPING BOX SIZE
59.1 x 9.5 x 30.7 in
(150 x 24 x 78 cm)
BOX WEIGHT
73.9 lbs (33.5 kg)
MOTOR
750W (Sustained), 48V Brushless Rear Hub Motor
THROTTLE
Throttle from initial pedal
DISPLAY
LCD Smart Easy Read Display with Backlight
SPEED
Up to 20 MPH (32.2 km/h) on Throttle and Pedal Assist
BATTERY
Removable Lithium-ion 48V, 10.4Ah
SENSORS
Cadence
CHARGER
54.6V / 2A UL-Listed
CHARGE TIME
Up to 6 Hour Charge Time
CHARGE CYCLES
500 cycles
RANGE
45 Mile (72.4 km) Average Range on Pedal Assist Level 1
FRAME
17.5" (44.5 cm) Alloy Frame
FORK
27.5" (69.9 cm) Suspension Fork
WEIGHT LIMIT
265 lbs (120 kg)
KICKSTAND
Included
CASSETTE
7 speeds
SHIFT LEVER
Included
BRAKES
Disc Brakes
RIMS
Alloy 27.5" x 1.5 (39.9 x 3.8 cm) x 13G x 36H,Double Wall
SPOKES
Stainless Steel
TUBES
Butyl Rubber, 27.5 x 2.4" (39.9 x 6.1 cm)
HUBS
Alloy, M9 x 13G x 36H x 100 x 108 with Quick Release
TIRES
27.5 x 2.4" (39.9 x 6.1 cm)

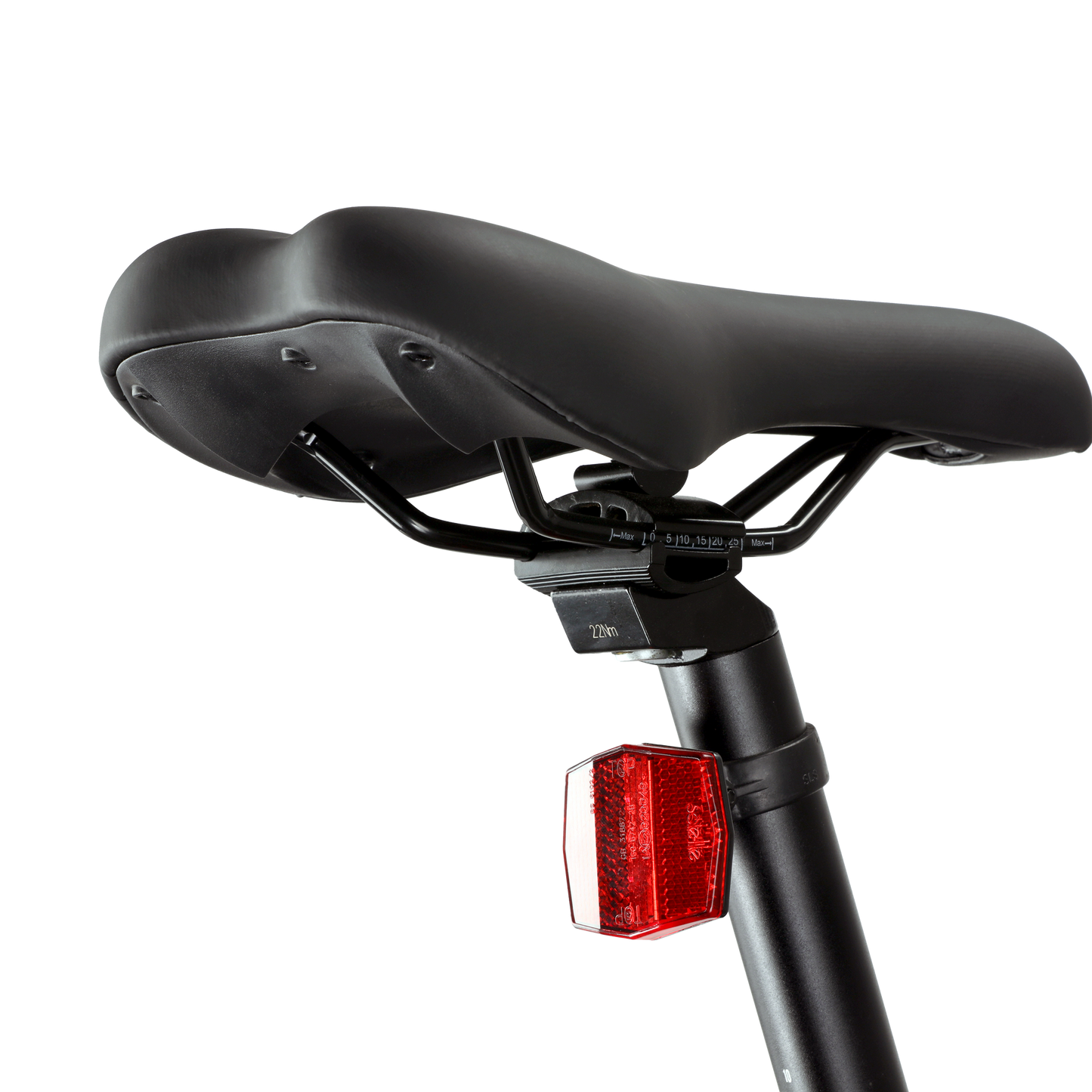

SADDLE
PU
SEATPOST
φ30.9 x 250mm x 2.2T, without Clamp, with Safeline
STEM
Alloy, ø28.6 Separated
SEAT CLAMP
Double Socket Hex Screws
HANDLEBARS
Alloy
GRIPS
TPR
FOOT PEGS
None
RACKS
None
CHAIN
1/2" x 3/32" (1.27 x 0.24 cm) x 38T x 170L, with Alloy Crank
RECOMMENDED RIDER HEIGHT
5'5" (165.1 cm) +

SWFT E-BIKES ARE DESIGNED FOR SELF-ASSEMBLY IN 7 STEPS, WITH EVERYTHING YOU NEED INCLUDED - YOU’RE IN THE DRIVER’S SEAT AND YOU’LL GET TO KNOW YOUR E-BIKE INSIDE AND OUT. CHECK OUT OUR MODEL-SPECIFIC ASSEMBLY GUIDES HERE

time

  • 25-40 minutes

tools

  • 3 allen wrenches
  • 1 multi-purpose wrench
  • All included

hitting a roadblock?

  • Book a 30 minute call with a SWFT bike expert.
  • Schedule live support with SWFT customer service.



    schedule assembly

    • White glove assembly by velofix.
    • Select Velofix at check out to schedule your in-home assembly.
      Velofix
    While the speed at which you pedal is up to you, our throttle and pedal assist features top out at 19.8 mph, the perfect pace to streamline your commutes and accelerate your adventures without requiring a license in most states.

    E-bikes have many components and each year’s technology brings new features and advances to keep track of. We want to simplify the search process so you can shop with confidence. Read on to learn about important features to consider when purchasing an e-bike:

    • TIRES

    • Where do you ride? The BMX's performance tires are high-tread. The VOLT’s road tires are aerodynamic for fast everyday commuting while the FLEET’s beach cruiser tires offer more cushion and traction for a more comfortable, laid back ride. The ZIP features even thicker tires with substantial tread for riding on or off the road.
    • MAX SPEEDS

    • Max speed is an important factor to consider depending on your needs, comfort level, and state regulations. Our throttle and pedal assist features power your ride up to 20 mph.
    • GEARS

    • Also referred to as speeds (i.e. 3-speed bicycle), gears allow you to change the ease with which you pedal depending on the incline or terrain. For example a steep incline may require easier pedaling and thus a lower gear, while pedaling downhill may require a more resistant pedal and thus a higher gear so that your pedaling actually helps propel you forward and in addition to gravity.  You might opt for a bike with several gears versus a single-speed bike, depending on your needs, but bear in mind that additional gears add weight to your bicycle. Because our bikes are electric, we’ve included features like a throttle and pedal assist to minimize the effort required to ride, in lieu of multiple gears. Our ZIP bike however does include 6 gears for a variety of inclines and terrains.
    • BATTERY LIFE

    • Batteries are important to consider for the longevity of your bicycle. Our e-bike batteries have a 600-cycle lifespan and have been tested to meet UL2271 standards to optimize performance.
    • MAX RANGE

    • This refers to the maximum distance your e-bike will travel while employing the throttle at medium capacity on a fully charged battery before charging is required. Check below for each bike’s max range* on a single charge.
      • BMX E-bike: 18.9 mile max range
      • VOLT E-bike: 32 mile max range
      • FLEET E-bike: 37.2 mile max range
      • ZIP E-bike: 37 mile max range
    • * Varies slightly depending on rider weight and riding terrain.
    • THROTTLE

    • Some e-bikes are equipped with a throttle, a mechanism that powers the motor with a twist on the handlebar. In addition to pedal assist, all SWFT e-bikes feature a throttle which you can use in tandem with the pedal-assist, or on its own without pedaling.
    • PEDAL ASSIST

    • Most e-bikes are equipped with pedal assist, an operating mode that activates the motor when you pedal to give your ride an electric-powered boost. Some e-bikes forgo pedal assist in favor of a throttle. All SWFT e-bikes feature both a throttle and pedal assist so you can choose how to power your ride, or activate both simultaneously for extra motor power.
    • WEIGHT

    • Bike weight is a factor to consider depending on how you will store and transport your e-bike. Electric bikes tend to be heavier than traditional bikes due to the added motor, battery and other features. We’ve developed our SWFT e-bikes to optimize performance and minimize weight, with each model falling below the average weight of its respective category.
      • BMX: 39.7 lbs
      • VOLT: 44.1 lbs
      • FLEET: 50.7 lbs
      • ZIP: 66.1 lbs
    • CLASS

    • E-bikes are typically designated as Class 1, 2, or 3, according to available features and maximum speed. SWFT e-bikes fall under the Class 2 category meaning they feature both pedal assist and throttle with a maximum assisted speed of 19.8 mph.
    • SEAT

    • Seat type is important to consider depending on what type of ride you are looking for. The VOLT features an aerodynamic seat for a faster, more athletic ride while the FLEET is equipped with a wider, more cushioned seat for a laid back and comfortable ride. Our ZIP model features an elongated motorcycle style seat for stability, comfort, and extra room.

    Each of our e-bikes works for a range of rider heights and the BMX, FLEET, and VOLT e-bikes feature adjustable seat posts. See below to determine which e-bike is best for you.

    • BMX—best for riders 5’3” and up. See more height and fit details for the BMX here
    • FLEET—best for riders between 5’7” - 6’2”. See more height and fit details for the FLEET here
    • ZIP—best for riders 5’5” and up. See more height and fit details for the ZIP here
    • VOLT— best for riders 5’9” and up. See more height and fit details for the VOLT here.
    Not usually. While the majority of states across the country regulate e-bikes similarly to traditional bicycles and do not require a license, some holdouts still place e-bikes into the motor vehicle category. Check your state’s local e-bike regulations to determine which license, if any, is required to operate a Class 2 e-bike.

    Our warranties cover your SWFT E-Bike purchase against manufacturing defects. Just register your bike and read the details below:

    • Frame: 24 months
    • Battery: 12 months
    • Electric Motor: 12 months
    • Charger/Controller: 12 months
    • Other Electric Parts: 24 months

    This warranty covers manufacturer defects and normal use only. It does not cover the product due to rider misuse, neglect, accident or improper servicing. Any attempt of repair done by the consumer (other than tires and normal adjustments) will void the warranty.
